Dayin Manufacture
Dayin has a complete product design and manufacturing team, which can provide excellent product design services. Mold Department has professional mold processing equipment and years of experiences in mold design and production, which can provide customers with all kinds of plastic injection mold and alloyed tools. The plastic department has imported injection molding machines from Japan and Taiwan, and is equipped with automatic removal manipulator, independent thermostatic workshop, centralized drying / dehumidifying and feeding system, and provides all kinds of plastic ejection products to customers. The processing department has automatic two coating and two baking UV curing furnace, large four color printing machine, single and double color transfer printing machine, hand printing table, flat screen printing machine, roll printing machine, walking board table, large exposure machine and baking machine, providing products of all kinds of paint spray and product printing for customers. Quality control department has a complete quality inspection system, and the testing room is equipped with a variety of precision 3D / 2D testing instruments to ensure that the customer can meet the international standards of quality.
Service
Tooling

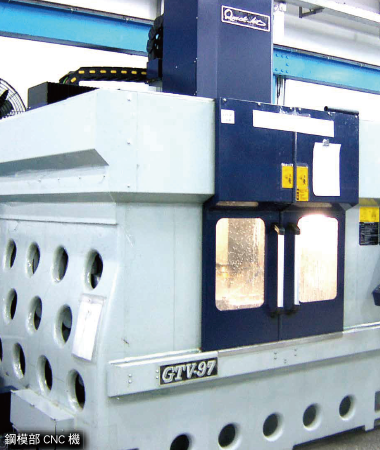

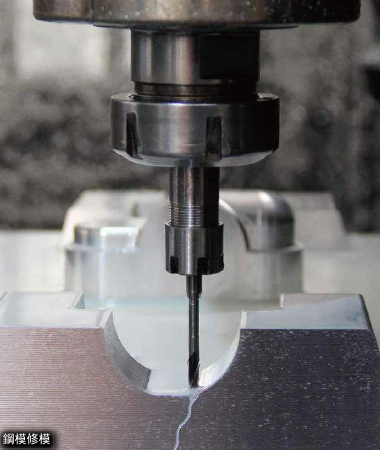

On the design and manufacture part of the mold, Dayin has its own mold workshop and professional mold processing equipment, providing mold development before production and mold maintenance during production. There have been cases of floor sweeping robots, household appliances, all in one PCs, keyboards and mice, mobile phone parts and shells, etc.
|
Name
|
Number/Unit
|
Tooling Equipment
|
Grinding Machine
|
3/PCS
|
Water Grinding Machine
|
1/PCS
|
Knife Sharpener
|
2/PCS
|
Quick jet CNC
|
2/PCS
|
DAHLIH CNC
|
2/PCS
|
Milling Machine
|
8/PCS
|
Die Spotting Machine
|
1/PCS
|
Lathe
|
2/PCS
|
Drilling Machine
|
1/PCS
|
Sawing Machine
|
1/PCS
|
EDM
|
4/PCS
|
Big PCS Drilling Machine
|
1/PCS
|
Injection Molding

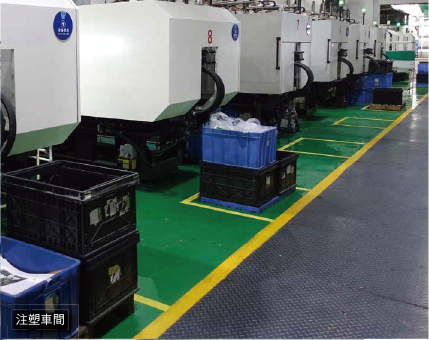

The injection molding part has injection molding machine, high-speed molding machine, vertical injection molding machine and blow molding machine with a variety of tonnage (120- 650T). Examples include high-speed forming of mobile phone casings, gas assisted forming of keyboards and handles, secondary ejection forming of packaging products, embedding forming to make an integrated machine, and interior decorative projecting to make plates and blow molding to make children's straws.
Process
-
High Speed Injection Molding
-
Gas-Assistant Control Molding
-
Two Shot Molding
-
Insert Molding
-
IMD In-Mold Decoration
-
Blow Molding
|
Tonnage
|
Max Mold Height
|
Clamping Stroke (MM)
|
Injection Volume G
|
Number/Unit
|
Hydraulic press
|
Motor
|
895*895
|
900
|
2344
|
2/pcs
|
550T
|
850*850
|
850
|
2026
|
2/pcs
|
470T
|
800*800
|
750
|
1400
|
1/pcs
|
450T
|
780*780
|
740
|
1693
|
3/pcs
|
380T
|
730*630
|
1430
|
972
|
6/pcs
|
300T
|
660*660
|
600
|
776
|
1/pcs
|
280T
|
610*610
|
580
|
545
|
7/pcs
|
160T
|
470*470
|
520
|
230
|
9/pcs
|
120T
|
410*410
|
360
|
157
|
7/pcs
|
90T
|
360*360
|
700
|
110
|
5/pcs
|
85T
|
400*400
|
270
|
75
|
1/pcs
|
60T
|
310*310
|
600
|
60
|
3/pcs
|
Motor
|
230T
|
560*610
|
450
|
210
|
3/pcs
|
190T
|
570*520
|
470
|
157
|
3/pcs
|
180T
|
450*450
|
405
|
386
|
7/pcs
|
60T
|
240*205
|
270
|
60
|
1/pcs
|
Equipment
|
Mixer
|
11/pcs
|
Temperature Control Machine
|
11/pcs
|
Grinding Machine
|
9/pcs
|
Manipulator
|
36/pcs
|
Secondary Processing

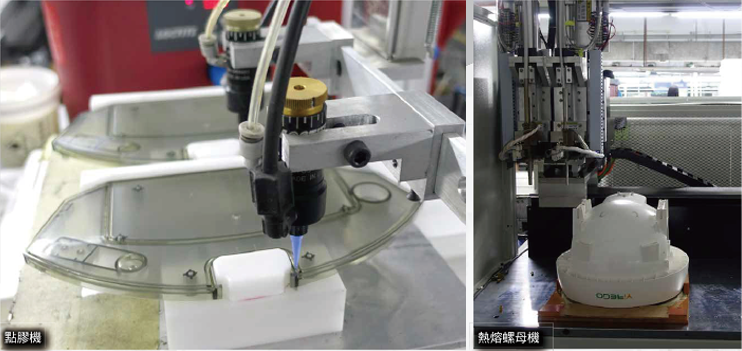

On the processing part, Dayin has 4 screen printing production lines and 3 painting production lines, and has the technology and experience on screen printing, printing, hot printing, radium carving, painting and others. The assembly part can be operated with hot melt, ultrasonic welding, UV glue welding and so on.
Process
-
Silk/Pad Printing
-
Hot Stamping
-
Laser Etching
-
Heat Melting
-
Ultrasonic Melting
-
UV Glue Melting
-
Painting
|
Name
|
Specifications
|
Number/Unit
|
Secondary Processing Equipment
|
Single Color Paddle Print Machine
|
4 ” *4 ”Single Color
|
9/pcs
|
Single Color Paddle Print Machine
|
4 ” *6 ”Single Color
|
3/pcs
|
Two Color Paddle Print Machine
|
4 ” *8 ”shuttle
|
3/pcs
|
Four Color Paddle Print Machine
|
4 ” *8 ”shuttle
|
5/pcs
|
Four Color Paddle Print Machine
|
4 ” *6 ”turntable
|
2/pcs
|
Six Color Paddle Print Machine
|
4 ” *8 ”shuttle
|
1/pcs
|
Curve Silk Print Machine
|
Roller Silk Print Machine 1000mm
|
1/pcs
|
Flat Silk Print Machine
|
Flat Silk Print 300mm*500mm
|
2/pcs
|
Hot Stamping Printer
|
Manual hot stamping printer
|
2/pcs
|
Hot Stamping Printer
|
Automatic hot stamping printer
|
1/pcs
|
Foil Stamping Machine
|
Flat foil stamping Machine
|
1/pcs
|
Screw Machine
|
XY axis Automatic
|
1/pcs
|
Glue Machine
|
XY axis Automatic
|
1/pcs
|
UV Curing Light Source
|
Automatic curing light source
|
1/pcs
|
Seal up Tester
|
Blowby Test
|
2/pcs
|
Three Pipeline 30m*1.2m
|
Assembling

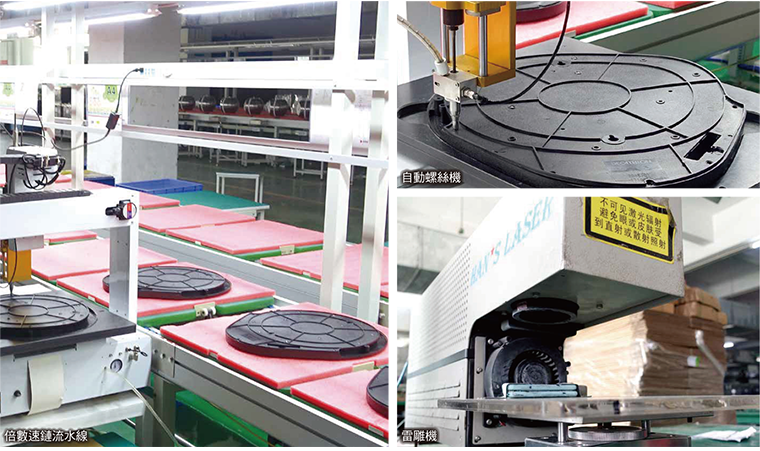

On the assembly section, Dayin has experienced management staff, various automatic and semi-automatic equipment and several multiple speed chains pipeline, and continues to improve efficiency and quality through continuous upgrading and optimization of equipment and processes on pipeline. Our examples of assembly include, for example, integrated computers and various electronic sports products.
|
Name
|
Number/Unit
|
Assembling Equipment
|
Automatic packaging machine
|
1/pcs
|
Automatic foil stamping Machine
|
2/pcs
|
Grid foil stamping Machine
|
1/pcs
|
Ultrasound Machine
|
1/pcs
|
High frequency Machine
|
1/pcs
|
Screw Machine
|
2/pcs
|
Multiple speed chain line
|
4/pcs
|
Laser carving Machine
|
1/pcs
|
Quality Control

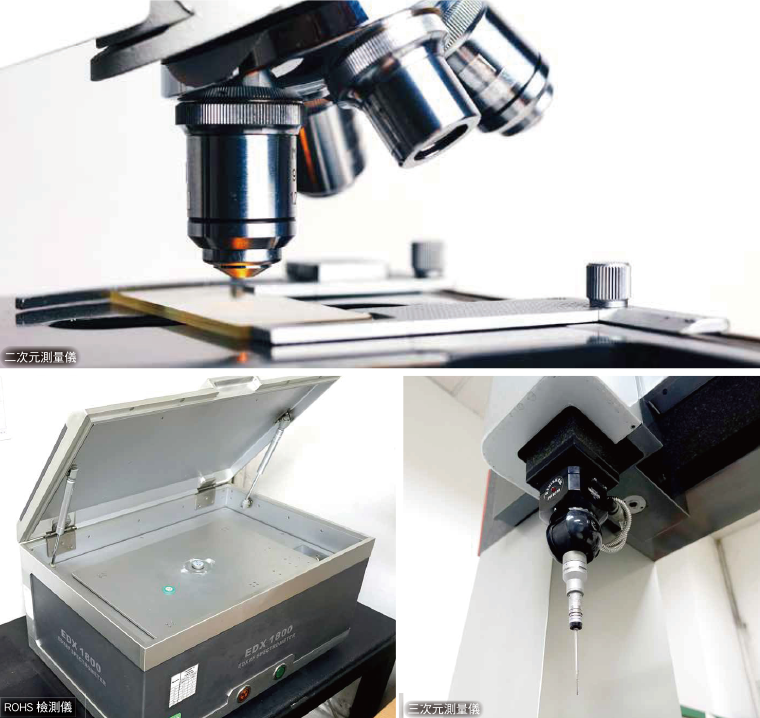

According to ISO9001 quality management system, quality control personnel and system are arranged, and it has equipped with professional testing laboratory, which contains precision 3D / 2D testing instruments, ROHS X-ray detectors, transport vibration testing equipment, constant temperature and humidity testing equipment, standard light source detector, and physical testing equipment, which can simulate various international test standards and provide the highest quality products.
|
Name
|
Number/Unit
|
Quality Control Equipmen
|
3D Measurement Machine
|
1/pcs
|
2D Measurement Machine
|
1/pcs
|
ROHS X-Ray Detector
|
1/pcs
|
Temperature & Moisture Test Equipment
|
1/pcs
|
Salt mist Tester
|
1/pcs
|
Multi light lamp box
|
1/pcs
|
Propulsive force/Pulling force Tester
|
1/pcs
|
Torque Tester
|
2/pcs
|
Biting force Tester
|
1/pcs
|
Rupture strength Tester
|
1/pcs
|
Vibration Test Equipment
|
1/pcs
|
Dishwasher
|
1/pcs
|
Friction Tester
|
1/pcs
|
Portable Durometer
|
1/pcs
|
Sharp edge Tester
|
1/pcs
|
Sharp point Tester
|
1/pcs
|
Small object Tester
|
1/pcs
|
Lens transmittance tester
|
1/pcs
|
